Pick-to-Light shelf displays for assembly and production workstations

The pick to light series « PTF-S » was specially developed for extremely compact shelving systems and is therefore ideal for small parts picking, at assembly workstations, for instance, as worker guidance.

The system supports employees with clear visual guidance: the bright signal light clearly shows employees the correct material containers from which to remove the components. The digital display shows the required quantity. This guides them safely through the assembly process step by step. The clear guidance and elimination of search times increase efficiency and quality and also make work easier for employees with certain limitations.

Our PTF-S modules include the following key features (depending on the model):

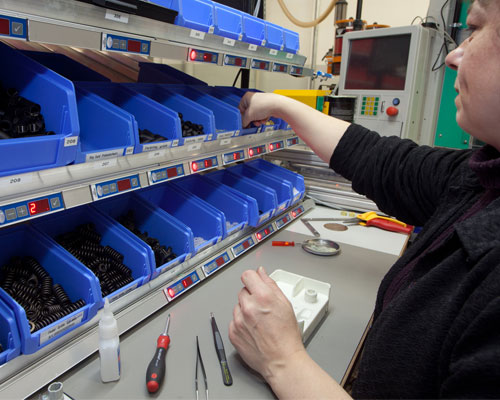

  • digital pick to light display PTF-S at an assembly workstation

    PTF-S at an assembly workstation: the system guides the worker visually through the assembly process step by step. ✔ Fast, ✔ error-free, and ✔ reliable.

    A clearly visible eye-catching light in seven colours

  • Wear-free, confirmation touch button, optionally with sensor technology for touch-free confirmation
  • Three-digit mumerical display
  • Correction keys (foil-covered) for quantity correcting or inventory transactions
  • Robust aluminium housing
  • Automatic self-test for the continuous control of all display components
  • Installation: easy clip-on/snap-On technology
  • Installation height: 25 mm
  • Connection: spring technology
  • Temperature range: -30°C to +50°C

Light modules

PTF-SL-3

slim Pick-by-Light display
Pick to Light shelf display PTF SL3 with sensor up
Narrow Pick by Light shelf display PTF SL3 with sensor down

Size: H 25 x W 57 mm
Compact display with Dual LED (horizontally divided oval eye-catching lamp for displaying 2×7 colours) and OK button.
The compact design is ideal for small parts picking, at assembly workstations for instance, where the number of units required always stays the same.

Display with Sensor for contact-free confirmation:
Optional also with Quick Reply Sensor (QRS) for contact-free confirmation.
The calibratable sensor replaceds the mechanical confirmation button. Confirmation is made by the grasping movement.
Two models are available: Sensor directed upwards (fig. 2: QRS-UP) or sensor directed downwards (fig. 3: QRS-DOWN).

Options The shelf display PTF-SL-3 can be supplied with the following options:
contact-free confirmation with a sensor-feature - pick-by-light QRS-UP: The sensor installed above the display recognises movement and is used for contact-free confirmation.
contact-free confirmation with a sensor-feature - pick-by-light QRS-DOWN: The sensor installed below the display recognises movement and is used for contact-free confirmation.
sound SOUND: Acoustic signal transmitter for specific procedures or as a signal to attract attention.
Icon TOF sensor module TOF: Distance sensor for automatic level detection.

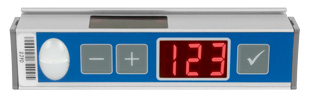

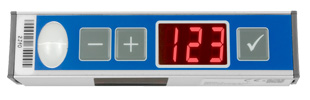

PTF-S3N-3

Pick-by-Light module slim with quantity display
Pick to Light Display S3N-3 in a slim design with quantity display and top sensor.
Slim pick-by-light module with digital quantity display and sensor down.

Size: H 25 x W 101 mm
Compact display with quantity display, Dual LED (horizontally divided oval eye-catching lamp for displaying 2×7 colours) and OK button.
The compact design is ideal for small parts picking, at assembly workstations for instance, where the number of units required always stays the same.

Display with Sensor for contact-free confirmation:
Optional also with Quick Reply Sensor (QRS) for contact-free confirmation.
Confirmation is made by the grasping movement.
Two models are available: Sensor directed upwards (fig. 2: QRS-UP) or sensor directed downwards (fig. 3: QRS-DOWN).

Options The shelf display PTF-SL-3 can be supplied with the following options:
contact-free confirmation with a sensor-feature - pick-by-light QRS-UP: The sensor installed above the display recognises movement and is used for contact-free confirmation.
contact-free confirmation with a sensor-feature - pick-by-light QRS-DOWN: The sensor installed below the display recognises movement and is used for contact-free confirmation.
sound SOUND: Acoustic signal transmitter for specific procedures or as a signal to attract attention.
Icon TOF sensor module TOF: Distance sensor for automatic level detection.
⭡ Go to overview

Displays for spare parts purposes with existing solutions

PTF-SL-1

Pick-by-Light Display-Modul PTF-SL-1

Size: H 25 x W 47 mm
Compact display, with eye-catching light in seven colours (Ø 5 mm) and OK button.

The compact design is ideal for small parts picking, for instance at assembly workstations, where the number of units required always stays the same.

Options No options available.

PTF-SL-2

Pick-by-Light Display-Modul PTF-SL-1

Size: H 25 x W 74 mm (Height with sensor 29 mm).
Compact display with sensor
Eye-catching light in seven colours (Ø 5 mm), OK button as well as a sensor for intervention monitoring or automatic confirmation.

The sensor can be implemented upward or downward.

Options The shelf display PTF-SL-2 can be supplied with the following options:
contact-free confirmation with a sensor-feature - pick-by-light QRS-UP: The sensor installed above the display recognises movement and is used for contact-free confirmation.
contact-free confirmation with a sensor-feature - pick-by-light QRS-DOWN: The sensor installed below the display recognises movement and is used for contact-free confirmation.
sound SOUND: Acoustic signal transmitter for specific procedures or as a signal to attract attention.

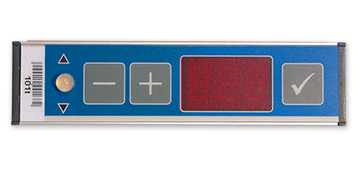

PTF-S3N-1

Pick-by-Light Display-Modul PTF-S3N-1

Size: H 25 X W 90 mm
Compact display with eye-catching light in seven colours (Ø 5 mm), three-digit display (height 9 mm), OK button and correction keys.

The compact design is ideal for small parts picking for instance at assembly workstations for quantities up to 999.

Options No options available.

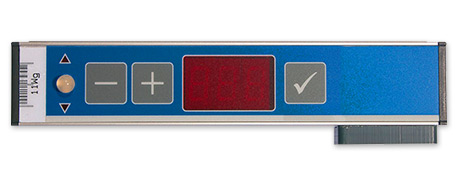

PTF-S3N-2

Pick-by-Light Display-Modul PTF-S3N-2

Size: H 25 x W 117 mm (Height with sensor 29 mm)
Compact display with sensor.
Eye-catching light in seven colours (Ø 5 mm), three-digits volume display (height 9 mm), OK button and correction keys, as well as a sensor for intervention monitoring or automatic confirmation.

The sensor can be implemented upward or downward.

Options The shelf display PTF-S3N-2 can be supplied with the following options:
contact-free confirmation with a sensor-feature - pick-by-light QRS-DOWN: The sensor installed below the display recognises movement and is used for contact-free confirmation.
contact-free confirmation with a sensor-feature - pick-by-light QRS-UP: The sensor installed above the display recognises movement and is used for contact-free confirmation.
sound SOUND: Acoustic signal transmitter for specific procedures or as a signal to attract attention.
